Online Documentation for SQL Manager for SQL server

Connection


The Connection section of the Database Registration Info dialog allows you to view and/or edit the connection properties in the corresponding boxes: Host name, Authentication, User name, Password, Database name, Database alias, Font charset, OLE DB Provider.

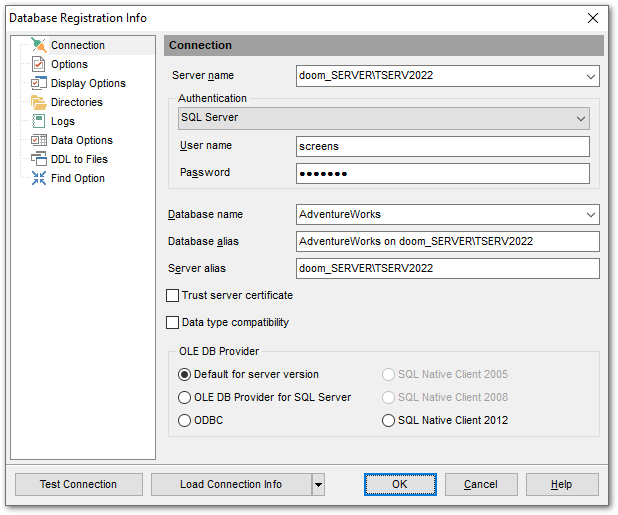

Database Registration Info - Editing connection properties



Server name

Stores the name of the Host where the database resides.



Authentication type

Specify the type of authentication to set up connection to the server.



Windows

With this option SQL Server validates the account name and password using the Windows principal token in the operating system and, and doesn't perform the identity validation.



SQL Server

Select this type if you wish to use SQL Server Authentication for the login. SQL Server Authentication stores logins and passwords in SQL Server and does not depend upon Windows. You can select SQL Server Authentication only if SQL Server Authentication has been enabled on the server.



Microsoft Intra MFA

Uses the standard interactive method with multifactor authentication option for Microsoft Entra accounts.



Microsoft Intra password

Allows specifying the username and password to the client and driver.



User name

Specify user name for selected authentication type.



Password

Input a password.



CheckBox Trust server certificate

If you use this option, the connection process skips the trust chain validation. In this case, the application connects even if the certificate can't be verified.



CheckBox Data type compatibility

Use this option to apply date time custom mask to query results specified at Color & Formats.



Database name

Stores the name of the database.



Database alias

Stores the database alias which is displayed in the DB Explorer tree and SQL Manager tools. By default, a database alias generated by the application has the following format: <database_name> on <host_name[\instance_name]>



Font charset

Stores the character set used to display data in the grid.



OLE DB Provider

The list of drivers is based on the ones available in the system. Select the preferable OLE DB Provider to be used for the connection; it affects the program behaviour on processing some specific data types, such as XML and TIME, and on performing T-SQL statements.



Once you have specified the connection properties, you can check whether it is possible to establish connection to the database: click the Test Connect button for this purpose. If connection is successful, you will get the 'Connected!' message; otherwise an error message will be returned.



The Copy Alias from... menu allows you to select the alias of a previously registered database and use it for the newly created/configured database.
