Online Documentation for DB Comparer for MySQL
Set specific parameters of comparison for each type of database objects.

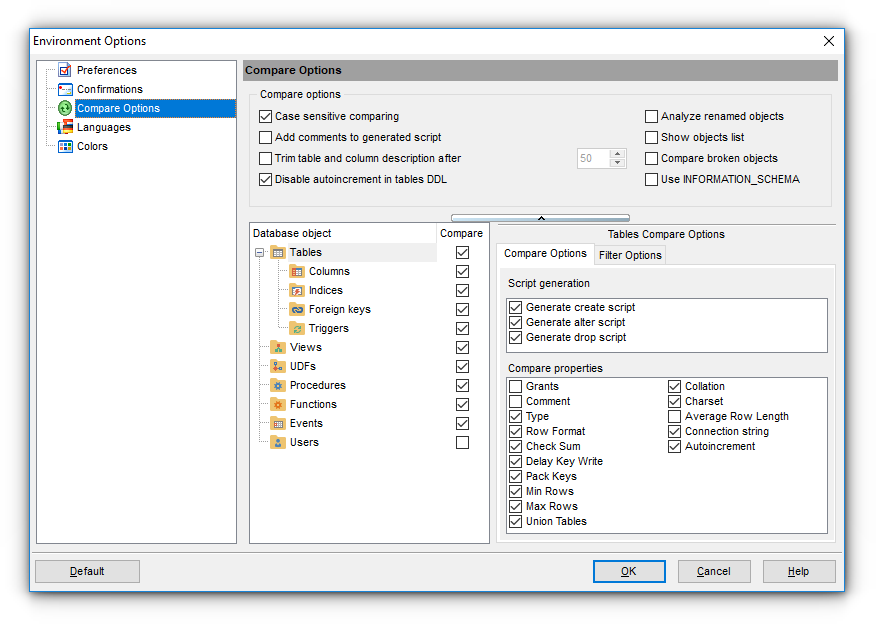

Select an object type in the object tree, set a flag to include the object type into the comparison process and define Compare properties in the corresponding group within the Compare Options tab.
The Script generation group allows you to specify whether a specific type of script (CREATE, ALTER, DROP) should be generated for objects of the selected type.
The Select All, Unselect All and Invert Selection buttons are implemented to make options selection easier.
Case sensitive comparing
Enable this option to make the comparing process case sensitive.
Enable this option to allow the utility to compare broken or invalid objects.
Analyze renamed objects
This option enables/disables comparing databases object which might have been renamed.
Show objects list
If this option is checked the list of all objects is displayed on the next step. If there is no need to check the list of retrieved objects you can uncheck this option to speed up comparison process.
Add comments to generated script
Use this option to toggle comments in modification script.
Trim table and field description after n characters
This option enables/disables cutting off the description for tables and fields after the specified number of characters.
If this option is checked then metadata is refreshed using the INFORMATION_SCHEMA database. Otherwise, the 'mysql' database is used.
Disable autoincrement in table DDL
If this option is checked autoincrement is off in DDL statements.
You can also set filtering criteria for objects to be compared. Use the Filter options tab for that purpose. For details see Setting compare options.
